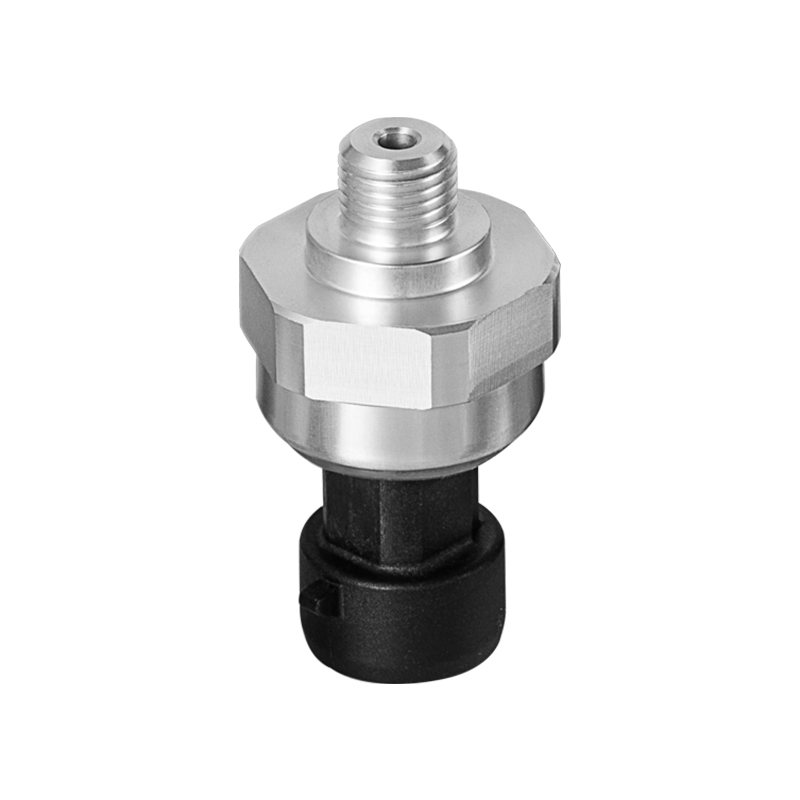

Automotive Engine pressure sensor 33SPC-P20F1
SAMPLE_REQUEST
5
5

The PC Series pressure sensors are widely applied in various automotive control systems. In automotive air conditioning systems, the sensor measures refrigerant pressure for real-time monitoring by the ECU. In braking systems, it monitors the pressure of the air reservoir in real time. In transmission systems, it is used to measure transmission oil pressure.

The product features a wide operating temperature range, high measurement accuracy, excellent reliability, and long service life. It ensures stable and dependable performance even under harsh environmental conditions.

Technical description

  • Operating Pressure
    1. 0~20 barG (adjustable)
  • Accuracy
    1. ±1.0%FS @25℃
  • Total Error Band
    1. ±2.5%FS（-40℃ ~ +120℃）
  • Operating Temperature
    1. -40℃ ~ +120℃
  • Media Temperature
    1. -40℃ ~ +120℃
  • Storage Temperature
    1. -40℃ ~ +120℃
  • Proof Pressure
    1. 40 barG
  • Burst Pressure
    1. 60 barG
  • Supply Current
    1. ≤10mA
  • Load Impedance
    1. 10 kΩ (typical)
  • Input Voltage
    1. 5 ± 0.25V DC
  • Output Signal
    1. 0.5 ~ 4.5V DC (ratiometric)
  • Response Time
    1. ＜10ms
  • Insulation Resistance
    1. ＞100MΩ @500V DC/1min
  • Overvoltage Protection
    1. 20V DC
  • Reverse Voltage
    1. -14V DC
  • Short Circuit Protection
    1. Yes
  • Ingress Protection
    1. IP67
  • Process Medium
    1. Cooling oil
  • Electrical Connector
    1. Packard #12065287
  • Pressure Port
    1. 3/8-24UNF-2A
  • Housing Material
    1. 6061 Aluminum Alloy

RELATED_PRODUCTS

8
33SPC-P10G2
Operating Pressure：0-10barG
  • Electrical Connector：Packard #12065287
  • Pressure Port：NPT 1/8-27
  • Housing Material：Brass
3
33SPC-P30B1
Operating Pressure：0–30 barG
  • Electrical Connector：Packard #12065287
  • Pressure Port：7/16-20UNF-2B
  • Housing Material：6061 Aluminum Alloy

ANNOTATION:

The product parameters are provided by Saftty's testing standards, and just for reference. The buyer is responsible for independent analysis, evaluation and judgment during design or use. For the data other than the above parameters, Saftty did not conduct any tests. and Saftty has the right to correct or change the data.
