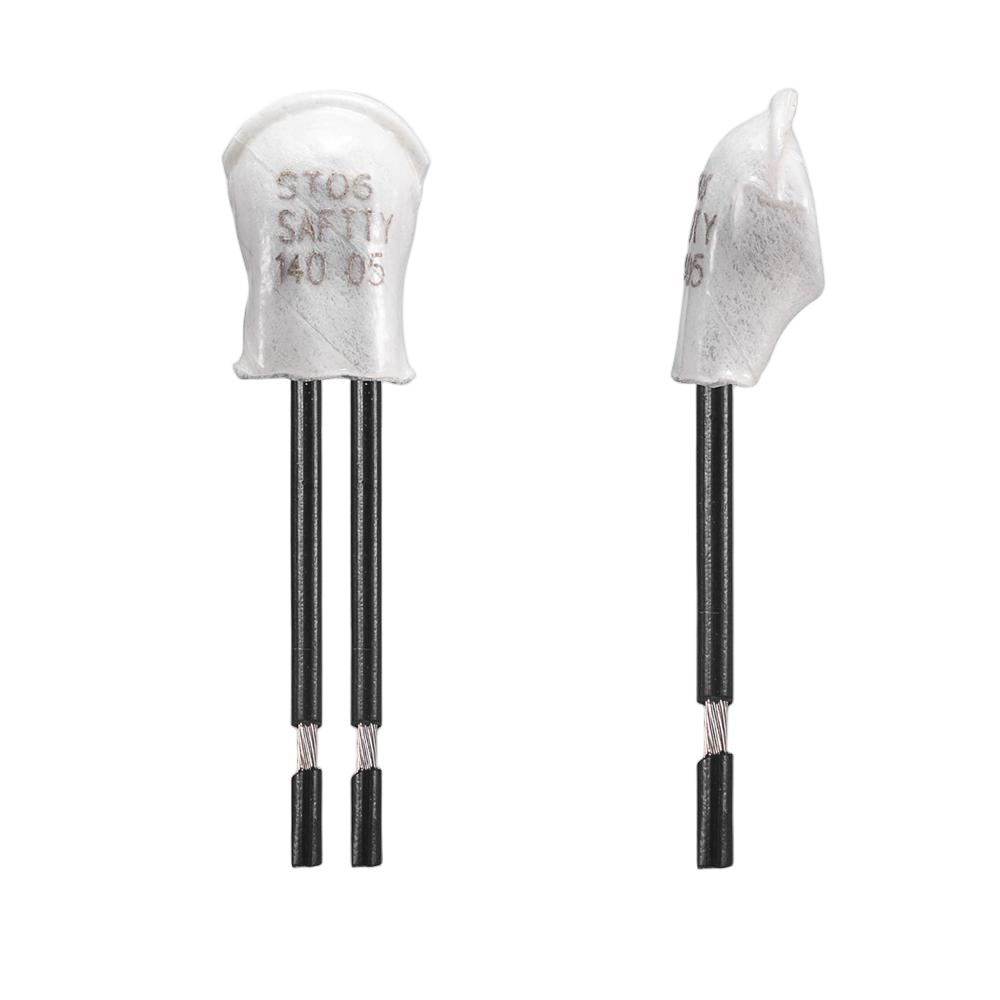

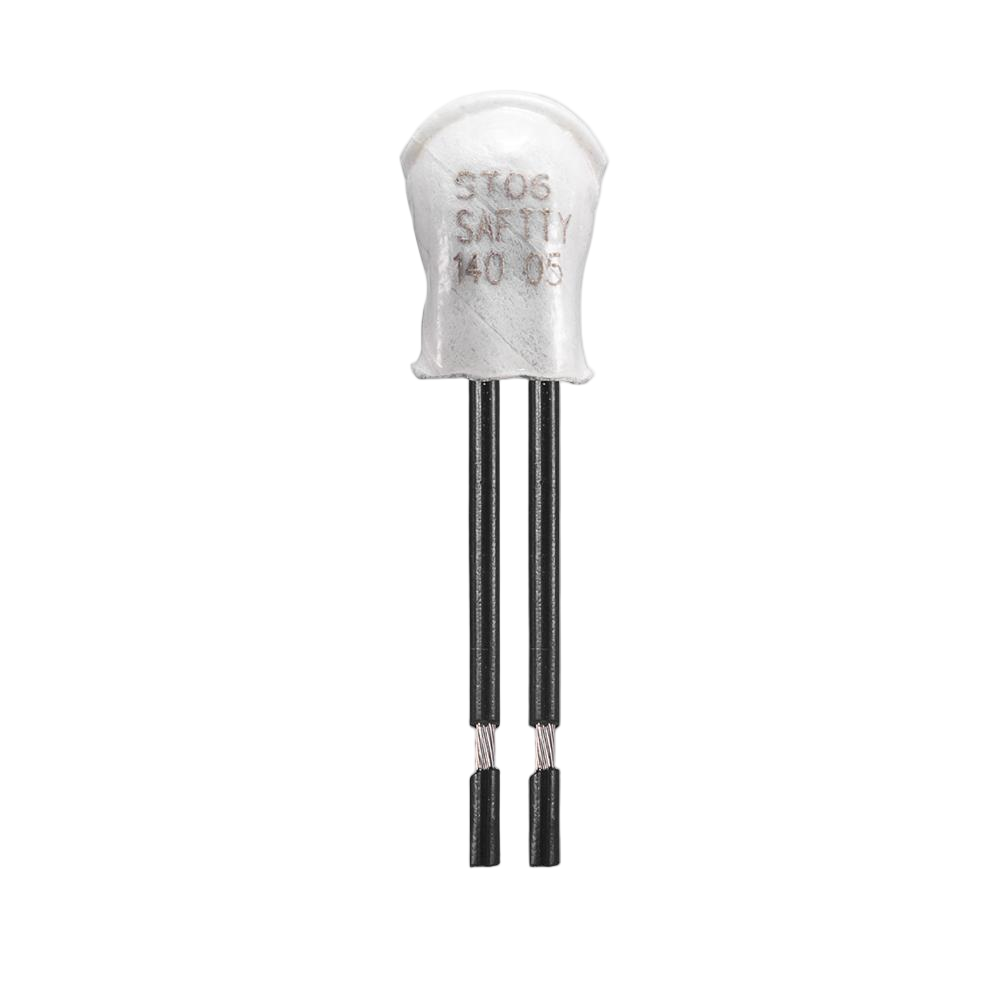

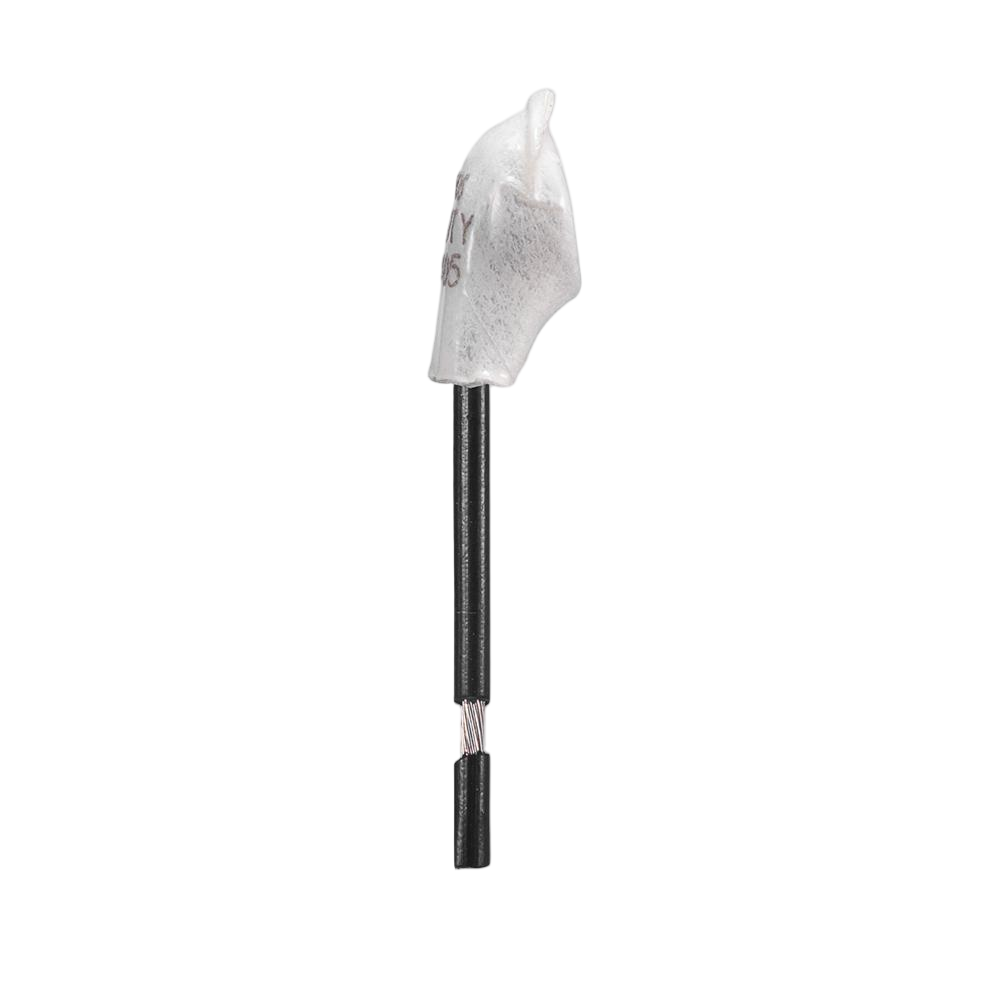

ST06 U1 Thermal Protector
Technical description
Action temperature in 5°C
60 °C - 180 °C
Tolerance (standard)
(60-180) °C ± 5K
Reset temperature & Tolerance
≥ 35°C (≤ 95°C NST)
-50K ± 15K (≥ 100°C ≤ 180°C NST)
-50K ± 15K (≥ 100°C ≤ 180°C NST)
Thickness
6.8mm
Diameter
9.5mm
Length of the insulation cap
16mm
Resistance to impregnation
suitable
Applicable installation protection level
I+ll
Pressure resistance to the shell
600N
Standard lead wire
0.81 mm² / AWG18
Anti-Vibration performance (10 - 60 Hz)
100 m/s²
Insulation & Voltage resistance
2.0 kV
Reaction time
< 1 ms
Contact IR
≤ 50 mΩ
Operating voltage range AC/DC
Max. 500 V AC / 28 V DC
Rated voltage AC
250 V
Rated current AC cos ϕ = 1.0 /cycles
10.0 A / 10,000
Rated current AC cos ϕ = 0.6 /cycles
6.3 A / 10,000
Max. switching current AC cos ϕ = 1.0 /cycles
25.0 A / 100
Rated direct voltage
24.0 V
Rated DC
10.0 A
Hinweis:
deThe product parameters are provided by Ando's testing standards for reference only. The buyer is responsible for independent analysis, evaluation, and judgment during design or use. Ando has not conducted any testing on data other than the above parameters, and has the right to correct or change the data.
